Fujifilm FDR D-EVO III G35 / G43

D-EVO III is the detector field engineers already praise for workflow. Fujifilm replaced the fragile glass TFT with a flexible film-based layer and bonded capture electronics on the irradiation side (ISS). The panel is about 40% lighter than first-generation D-EVO and 20% lighter than D-EVO II.

G35 is the 14×17 cassette-sized wireless panel. G43 is the 17×17. Both preview in under two seconds, cycle in under ten with SmartSwitch, and store up to 100 images in memory mode if the console is down. They drop into any standard bucky — medical, chiropractic, orthopedic — without changing the generator.

We sell, install, and service D-EVO III as an authorized Fujifilm line. Quotes stay private. Cassette size follows the exam — we will spec 10×12 for a podiatry tray and 14×17 or 17×17 where that geometry belongs.

What matters in the room

• Glass-free film-based TFT — 4.0 lb (G35) / 4.6 lb (G43) excluding battery
• Patented ISS (irradiation side sampling) for higher DQE at lower dose
• Hydro Ag antibacterial coating — 100× conventional silver ion

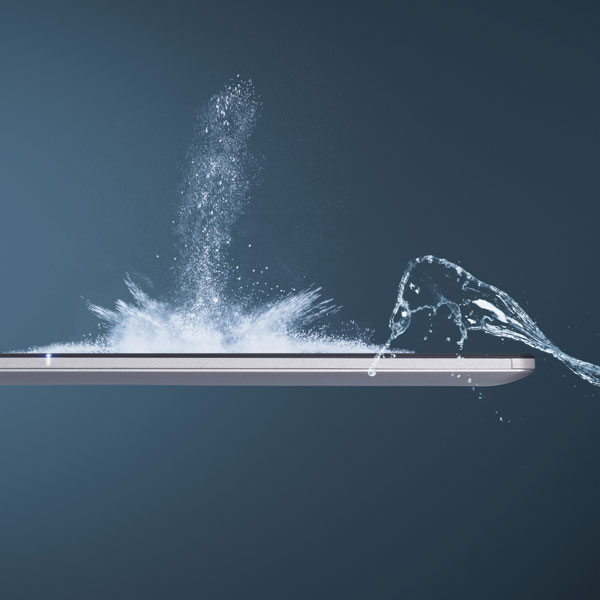

• IPX6 jet-proof / IP5X dust-proof sealed housing
• SmartSwitch auto-trigger; memory mode up to 100 images
• Virtual Grid and Dynamic Visualization II on FDX Console

How this system is used

• Hospital

  Glass-free cassette DR in a hospital bucky

• Orthopedic

  Lightweight 14×17 / 17×17 for orthopedic volume

• Chiropractic

  Cassette-sized wireless in a chiropractic wall stand

• Urgent Care

  Overnight CR-to-DR in an urgent care tray

• Private Practice & Specialty

  Flagship cesium panel in a single-suite practice
